We've designed the JUBU stainless steel manifold especially for the Lotus V6 engine. The diameters and the lengths of the tubes are optimized and the welding work is processed in a much higher quality than standard (round weld at the inside of the tubes, no plugged tubes but flat/blunt welded tubes).

With this premium manifold, the exhaust gases can flow in an optimial way and can set free additional power output. The product is capable for power outputs of 600+ hp. Furthermore, we save 2.9kg compared to the original manifolds.

Usage & Benefits

• Improved flow behaviour of the exhaust gases (due to the optimised design and the special manufacturing method), thus releasing additional power

• Weight-optimised design - weight: 2.35 kg per manifold. Weight saving of 2.9 kg compared to the original manifold

• Highest quality - handmade in Austria (optimised flange design and gap-free, butt-jointed components)

• Performance increase! As a result, our manifolds are also an integral part of our V6 performance kits. Attention: An ECU adjustment is absolutely necessary!

• Attractive appearance with CNC milled flanges

Details

• Designed with CFD-Simulations, tested and optimized on dyno and race track
• Optimal diameters and lengths of tubes
• Precisely and formed welded (also round weld without burrs at the inside of the pipes for an optimized flow)
• The components of the JUBU manifold are (in difference to products of most other manufacturers) not plugged into each other (which is heavier and has a negative effect on the flow), but flat/blunt welded (which is optimal for an efficient flow and reduces weight)

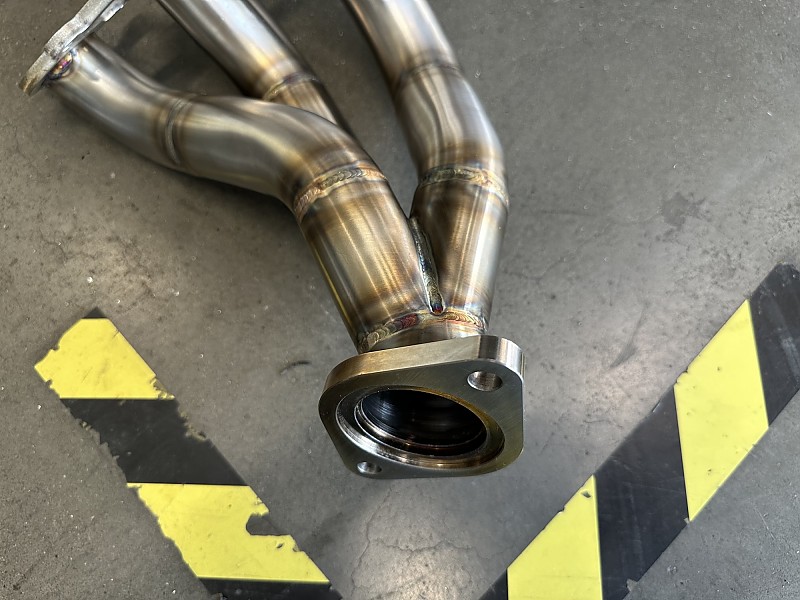

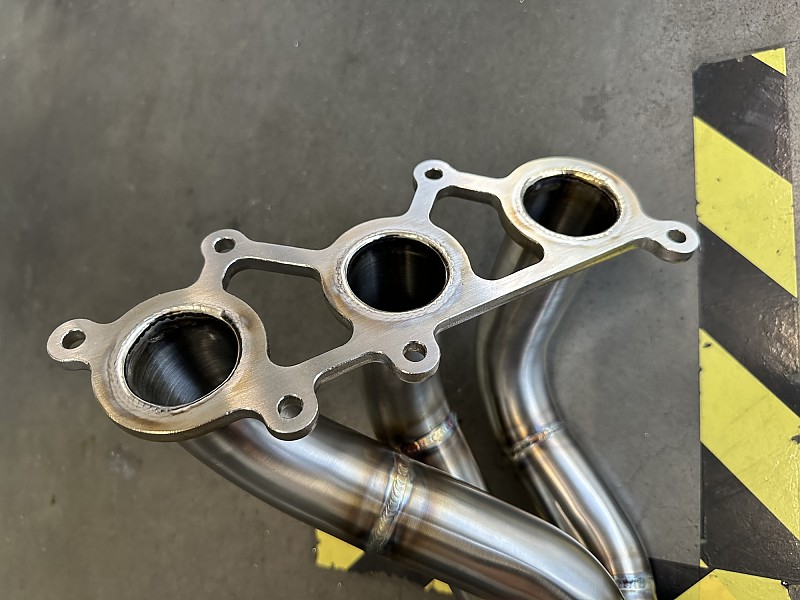

• Lightweight flange design (please see pictures)
• High-Quality materials (steel from Böhler- or VÖEST)
• Handbuilt in Austria - handbuilt at JUBU Performance

Fits for

• All Exige S3 models (V6)
• All Evora models
• 3-Eleven
• Emira V6

Scope of delivery

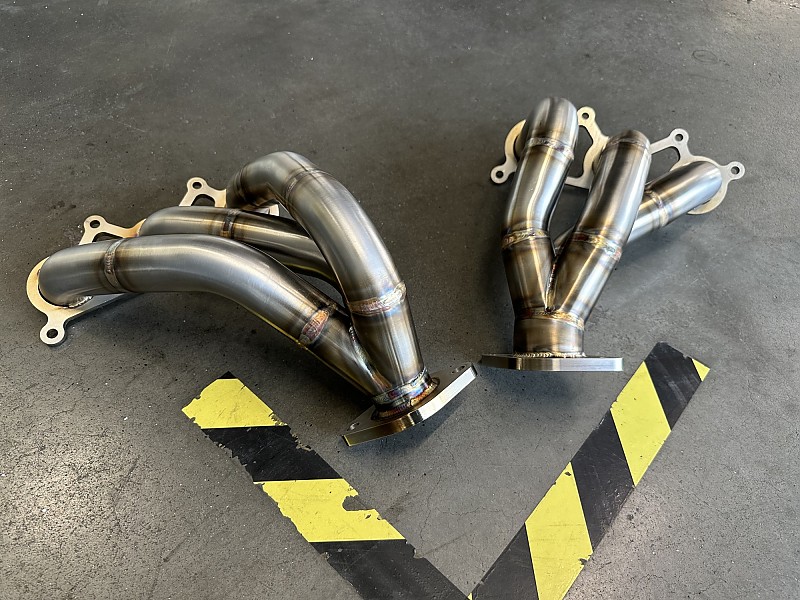

• 2 pcs. flow-optimized manifolds

Options (please choose via "options")

• JUBU Premium heat insulation for manifolds
• Manifold-Gaskets
• V-Band clamps

NOTE: You can install the JUBU manifolds with the OEM Y-Pipe as well as with the optimized JUBU stainless steel Y-Pipe. We highly recommend the usage of the JUBU HJS HD Sports catalytic converter.

ATTENTION: If you use any optimized manifold (as for example ours) an adaptation of the ECU-software is mandatory! Our spezialized engineers can apply the correct mapping for your car/power output. If there are no adaptations applied, engine failures/damages can happen!

If you have any questions about the product or how to order, please do not hesitate to contact us by phone (+43 7264 20175) or email.
