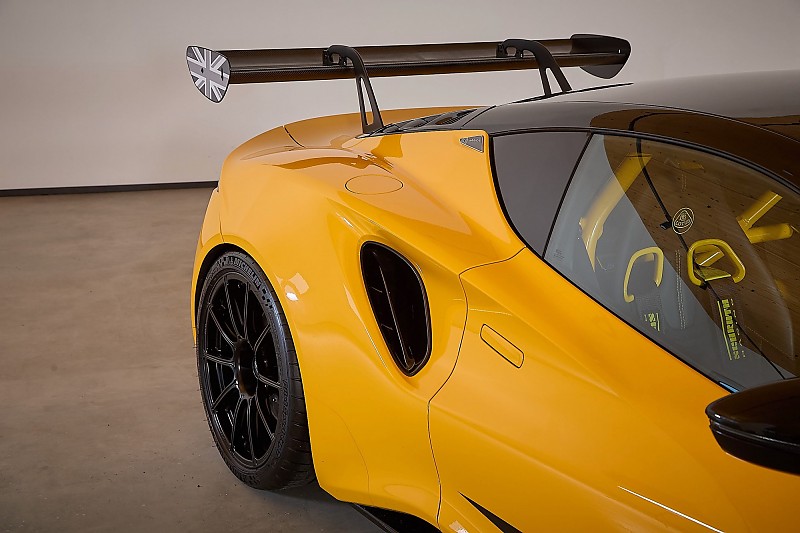

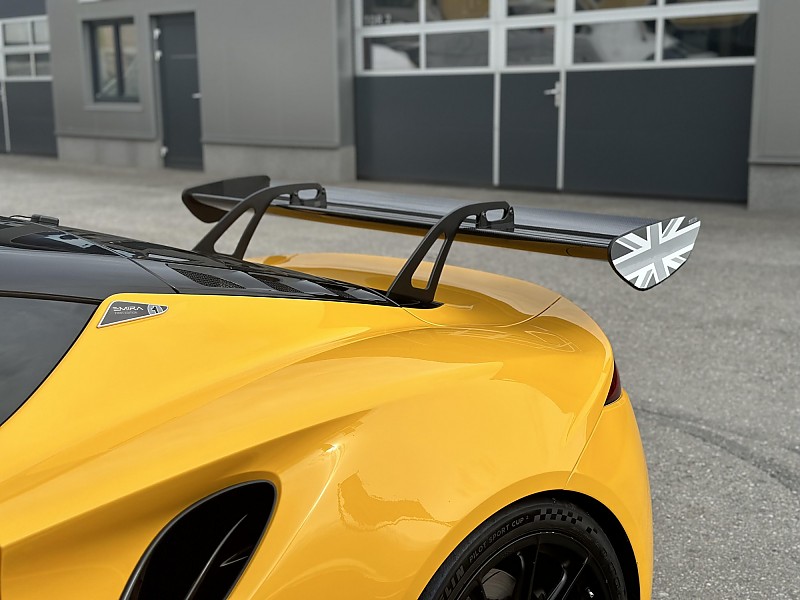

The basic design of the wing blade of the JUBU Swan Neck Carbon rear wing (Cup EVO) is based on the well proven JUBU Cup EVO wing profile. The wing position was adjusted by our technicians based on simulation and test data and positioned +40 mm higher and 30 mm further back to optimally utilise the advantages of the swan-neck concept.

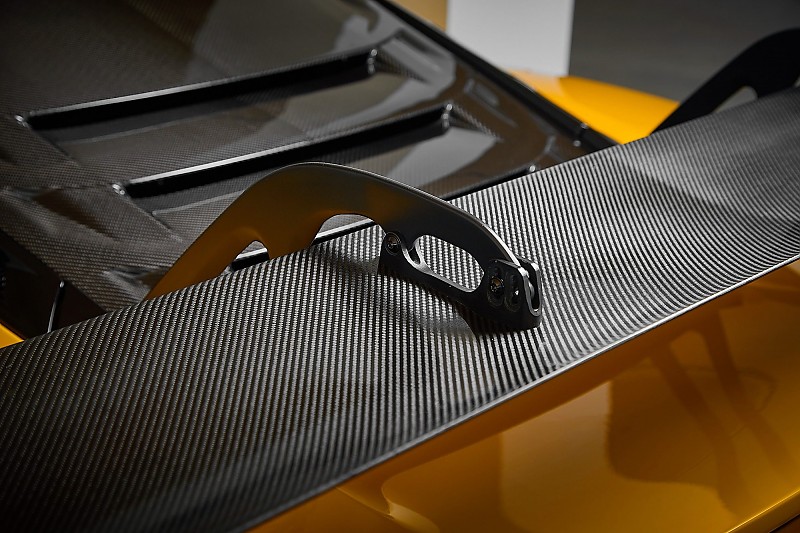

For a precisely adjustable aero balance on the vehicle, the angle of attack of the wing blade can be adjusted in 11 steps on the included JUBU wing bracket (1 x JUBU basic setup, 7 x steeper, 3 x flatter). Depending on the application, vehicle configuration and personal driving profile, more or less downforce can be generated on the rear axle in 11 adjustable steps.

In addition to the functional aspects (improved downforce, ideal aero balance, robust construction and optimum introduction/distribution of forces in the vehicle structure), we also placed great emphasis on an aesthetically pleasing design when developing the product. Compared to the current Lotus OEM wing of the Emira GT4, the JUBU wing an swan-neck design is visually lighter and much more elegant.

The JUBU Swan Neck Carbon Cup EVO rear wing for the Emira therefore provides a very sporty look on the one hand as well as more than sufficient additional grip on the rear axle and ideal car balance on the other.

Benefits & advantages

• Very sporty and effective design that harmonises very well with the look of the Emira (wing profile + visible carbon + elegant swan neck)
• Ideal airflow to the wing blade thanks to the swan-neck design and higher wing mounts
• Increased downforce on the rear axle, setup (aerobalance) precisely adjustable in 11 steps
• Ultralight construction (full carbon, milled high-strength aluminium, titanium screws)
• Easy to install, leaves no externally visible traces (no visible holes, etc.) in the bodywork when retrofitting

Product details

• Ultra-light visible carbon wing with lightweight, high-strength aluminium brackets/uprights
• High-gloss finish (sealed with UV-resistant paint)
• Complete set (ready to install, can be retrofitted without leaving any visible marks on the bodywork)
• All screws for wing attachment are made of titanium (black anodised)
• Designed using the latest CAD technology, extensively tested using simulations and on the road and racetrack
• Developed by JUBU Performance, handmade in Austria

Suitable for

• Emira V6
• Emira I4

Scope of delivery

• 1 pc. Ultralight rear wing made from visible carbon fibre Cup EVO
• 2 pcs. side panels for rear wing made from visible carbon fibre Cup EVO
• 2 pcs. Swan-Neck Wing-Stays Cup EVO (CNC-milled, high-strength aluminium, black anodised)
• 2 pcs. Mounting Brackets (for mounting on the vehicle)
• 2 pcs. 11-way adjustable wing brackets Cup EVO (CNC-milled, high-strength aluminium, black anodised)
• 1 set of screws for mounting (made of titanium, black anodised)
• Drilling and cutting templates
• Installation instructions

Note: The product is handmade, therefore the delivered product may differ slightly from the product images shown in terms of fabric and lay-up!

Note: The JUBU Carbon Cup EVO rear wing with Swan-Neck brackets is part of the JUBU Emira Aero-Kit. In combination with the JUBU carbon front splitter and the JUBU carbon diffusor extension fins, the aerodynamics of the vehicle can be further improved.

If you have any questions about the product or ordering, please do not hesitate to contact us by phone or email.
