Installation manual (15.5 mb)JUBU harness bar Emira

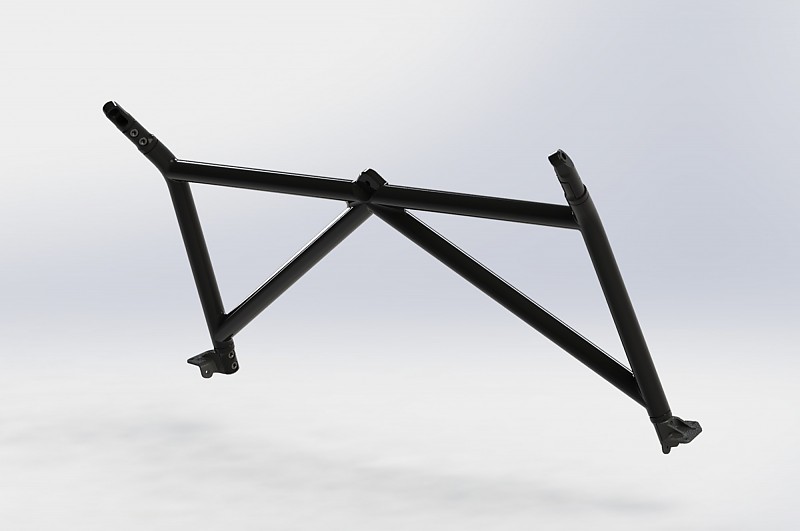

The JUBU harness bar is a MUST-have for every driver who wants to install a 4- or 6-point harness in the Emira. Even when driven only on roads, the use of a 4-point harness leads to a significant gain in overall safety. With the JUBU harness bar, the original 3-point seatbelt can remain in the vehicle and still can be used without any restrictions.
Because of its aluminum construction, the JUBU harness bar weighs only 3450g. It also can be removed without leaving visible marks on the vehicle (only its 2 end pieces which are riveted and glued to the chassis remain in the car. These remains can be hidden under OEM trim panels, therefore they are not visible).
The JUBU harness bar comes in anodized matte black as standard, various other colors are available ex works as option (pls. see "options").
Benefits & advantages
- Perfect option for installing a 4- or 6-point harness in the Emira
- Massive improvement for passive safety when driving on roads and even tracks

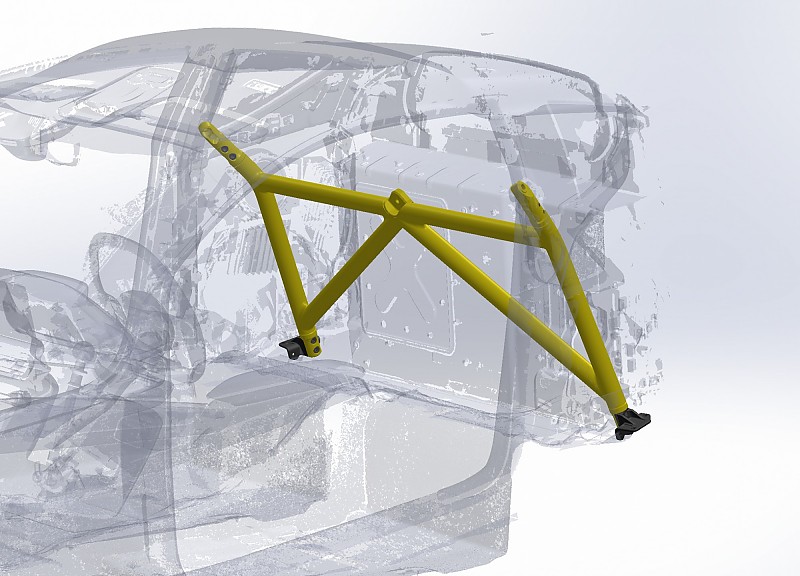

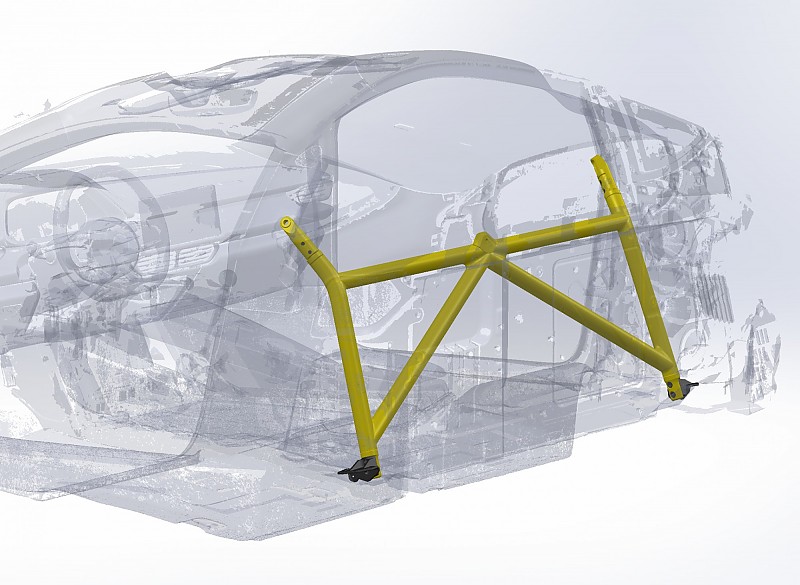

- Ideal positioned in the vehicle (belt bar not too high and optimum tension distribution)
- Coherent, decent, non-intrusive design (OEM look)
- Leaves no visible marks when removed (only 2 end-pieces remain but are hidden under OEM-Trim)
- Pretty inconspicuous in the vehicle (when ordered in black)
- Various colors available
Product details
- Made from high-strength aluminum
- CNC milled, anodized end pieces made of high-strength aluminium, riveted and glued to the chassis
- Titanium screws (anodized black) with torx drive
- Ultra lightweight and stable (3450g)
- Installation recommended to be executed by a professional
Suitable for
- Emira V6
- Emira i4
Scope of delivery
- JUBU aluminum harness bar (complete)
- Installation material (special adhesive and rivets)
- Installation instructions
Options/accessories (please select under “Additional options” if necessary)
- Model selection
- Color selection
Please note: A 4- or 6-point harness can NOT be used with Emira OEM seats. Seats with belt openings are mandatory!
